Agora Simulations

Overview

Cekura can simulate calls against any voice agent that runs inside an Agora RTC channel. Cekura joins the channel as a participant over WebRTC and exchanges 16 kHz mono PCM audio with your agent, then transcribes the conversation and runs your evaluators against it. Unlike static credentials, the per-call join details (app id, channel, token, and optional encryption) are minted at run time by an endpoint you configure — they are fetched for each run and never stored by Cekura. Use Agora Simulations when:

Your agent joins an Agora channel and you mint short-lived join tokens per session.
You want Cekura’s tester to converse with the agent directly in the channel.

The page below has two parts:

How to test — configure your agent and trigger runs from the dashboard or the API.
Session endpoint contract — what your endpoint must return so Cekura can join.

How to test
Session endpoint contract

Dashboard
Code

Configure Agora credentials

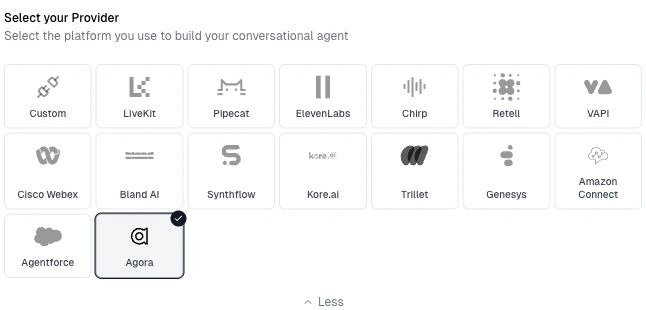

Open your agent settings and pick Agora in the provider grid:

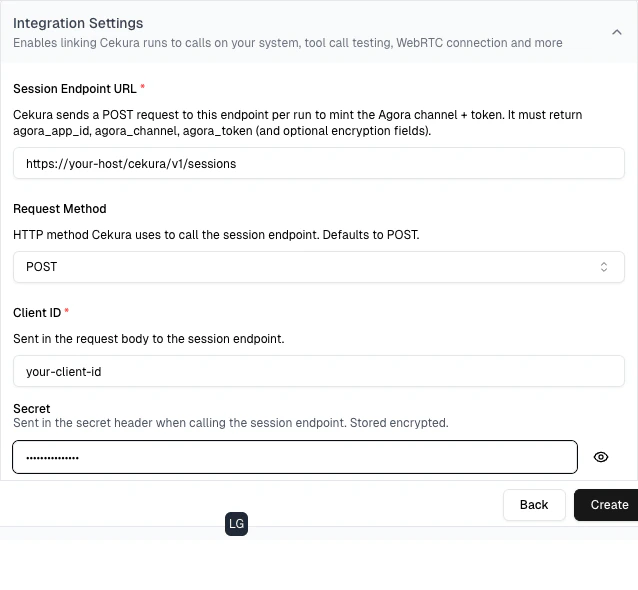

Then fill in the session-endpoint configuration:

Required:

Session Endpoint URL — the endpoint Cekura calls per run to mint the Agora channel + token (see Session endpoint contract).
Client ID — sent in the request body as {"client_id": "..."}.
Secret — sent in the auth header to your endpoint. Stored encrypted; write-only.

Optional:

Request Method — POST (default) or GET. Cekura uses this verb when calling your session endpoint.
Secret Header Name — the header the secret is sent in. Defaults to X-Cekura-Secret.

Your agent must be a live participant in the Agora channel the endpoint returns, exchanging raw pcm_s16le audio at 16 kHz mono. See Session endpoint contract for the exact response shape.

Run tests from the dashboard

Select scenarios for your agent and click Run.
With Agora configured, you will see a WebRTC option under VOICE in the Configure Run dialog.
Select WebRTC and click Run.

For each run Cekura will:

Call your session endpoint to fetch fresh join details (app id / channel / token / encryption).
Join the Agora channel as a participant and converse with your agent.
Capture the conversation, transcribe it, and run your evaluators against the result.

View results

Results appear in your dashboard like any other run — status, metrics, transcripts, and audio playback. The run type is shown as Agora.

Use the API to trigger Agora runs from your own code or CI.

Prerequisites

Configure Agora credentials on your agent first (same as the Dashboard tab): a Session Endpoint URL, Client ID, and Secret.

API Endpoint

POST https://api.cekura.ai/test_framework/v1/scenarios-external/run_scenarios_agora/

Authentication

Include your Cekura API key in the request header:

X-CEKURA-API-KEY: <YOUR_API_KEY>

Request Parameters

scenarios (array | integer | string, required): Test scenarios to run

Array format: List of scenario IDs [123, 456, 789]
Integer format: Run the first N scenarios for the agent 5
String format: Run all scenarios for the agent "all"

agent_id (integer, optional): Your Agent ID in Cekura. Required when using integer or "all" format for scenarios.frequency (integer, optional): Number of times to run each scenario (default: 1).name (string, optional): Custom name for this test run.concurrency_limit (integer, optional): Cap on parallel runs.

Examples

Single Run (cURL)

curl -X POST "https://api.cekura.ai/test_framework/v1/scenarios-external/run_scenarios_agora/" \
  -H "X-CEKURA-API-KEY: <YOUR_API_KEY>" \
  -H "Content-Type: application/json" \
  -d '{"agent_id": 12, "scenarios": [101], "frequency": 1}'

Run All Scenarios (cURL)

curl -X POST "https://api.cekura.ai/test_framework/v1/scenarios-external/run_scenarios_agora/" \
  -H "X-CEKURA-API-KEY: <YOUR_API_KEY>" \
  -H "Content-Type: application/json" \
  -d '{"agent_id": 12, "scenarios": "all", "frequency": 1}'

Python Example

import requests

API_KEY = "<YOUR_API_KEY>"
BASE_URL = "https://api.cekura.ai/test_framework"

headers = {
    "X-CEKURA-API-KEY": API_KEY,
    "Content-Type": "application/json",
}

payload = {
    "agent_id": 12,
    "scenarios": [101, 102],
    "frequency": 1,
    "name": "Agora Test Run",
}

resp = requests.post(
    f"{BASE_URL}/v1/scenarios-external/run_scenarios_agora/",
    headers=headers,
    json=payload,
)
print(resp.json())

Response

{
  "id": 16870,
  "name": "Agora Test Run",
  "agent": 12,
  "status": "in_progress",
  "success_rate": 0.0,
  "run_as_text": false,
  "is_cronjob": false,
  "runs": [
    {
      "id": 34625,
      "status": "running",
      "scenario": 101,
      "scenario_name": "Customer Support Scenario"
    }
  ],
  "created_at": "2026-06-03T09:32:59.484534Z",
  "updated_at": "2026-06-03T09:32:59.484942Z"
}

Error Responses

Missing Agora credentials

{
  "agent": ["Agent must have Agora credentials configured (agora_data with session_endpoint_url)."]
}

Missing session endpoint URL

{
  "agent": ["Agent agora_data must include session_endpoint_url."]
}

Invalid scenarios

{
  "scenarios": ["Invalid scenario IDs or scenarios not found"]
}

Insufficient balance

{
  "detail": "Insufficient balance for this operation"
}

Monitor Results

Poll for results using the List Runs with IDs API.

For every run, Cekura calls your configured Session Endpoint URL to obtain fresh Agora join details. This keeps tokens short-lived and lets you start the agent in the channel on demand.

Request

Cekura sends (method configurable, POST by default):

POST <session_endpoint_url>
X-Cekura-Secret: <your secret>            # header name configurable
Content-Type: application/json

{ "client_id": "<your client id>" }

For GET, client_id is sent as a query parameter and the secret header is unchanged.

Response

Return JSON with the join details. Cekura joins the channel as uid 1 (override with join_uid in the agent’s Agora config); your token must authorize that uid.

Field	Required	Description
`agora_app_id`	yes	Agora App ID for the channel
`agora_channel`	yes	Channel name to join
`agora_token`	yes	RTC token valid for the channel + join uid
`encryption_mode`	no	Channel encryption mode name, e.g. `aes_256_gcm2`
`encryption_key`	no	Encryption key (when encryption is enabled)
`encryption_salt`	no	Base64-encoded KDF salt (when encryption is enabled)

{
  "agora_app_id": "5bfbb040c5e34dd6917e05060bc05b97",
  "agora_channel": "your-channel-name",
  "agora_token": "007eJxTY...",
  "encryption_mode": "aes_256_gcm2",
  "encryption_key": "<base64 key>",
  "encryption_salt": "<base64 salt>"
}

Encryption is optional. Omit the encryption_* fields for an unencrypted channel. When present, encryption_mode must be a recognized Agora mode name and encryption_salt must be base64-encoded.
