Websocket Simulations

Overview

Cekura can simulate calls against any voice agent that exposes a raw-PCM WebSocket endpoint. Instead of going through a vendor SDK, Cekura dials your wss:// URL directly and exchanges 16 kHz mono PCM audio as binary WebSocket frames using the CHIRP protocol. Use Websocket Simulations when:

Your agent has no phone number and you don’t want to use a vendor SDK.
You already operate a real-time audio pipeline and want lower-latency bidirectional streaming.
You’re building a custom voice stack or research prototype that handles raw PCM natively.

The page below has two parts:

How to test — configure your agent and trigger runs from the dashboard or the API.
Protocol details — the full CHIRP wire format, for teams implementing the server side.

How to test
Protocol details

Dashboard
Code

Run tests directly from the dashboard against your CHIRP WebSocket endpoint.

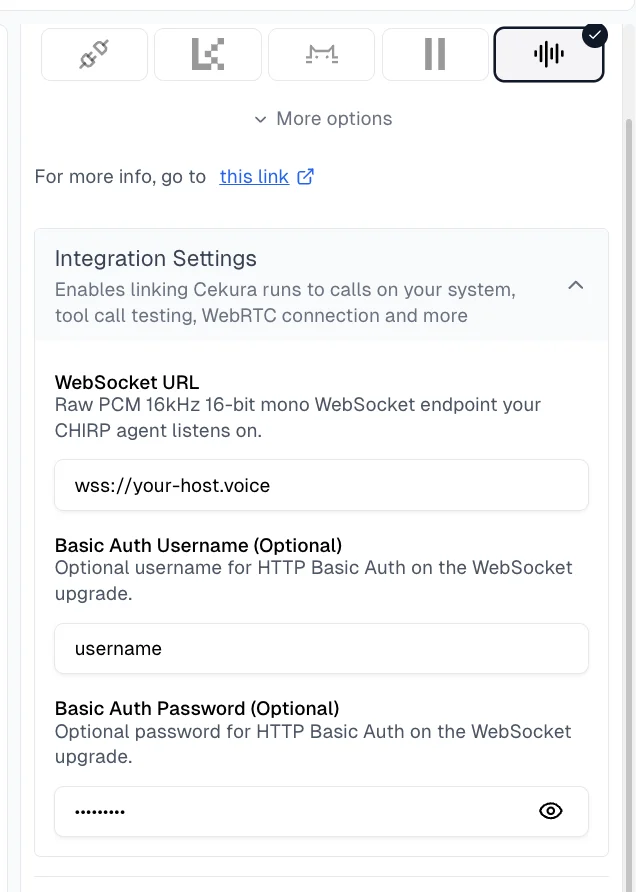

Configure Chirp credentials

Open your agent settings, pick Chirp in the provider grid, and fill in the WebSocket URL (and optional Basic Auth):

Required:

WebSocket URL — The wss:// (or ws://) endpoint your agent listens on. Cekura connects directly to this URL.

Optional:

Basic Auth Username
Basic Auth Password

When both username and password are provided, Cekura sends an Authorization: Basic <base64(user:pass)> header on the WebSocket upgrade. Leave them empty if your endpoint is unauthenticated.

Your endpoint must speak raw pcm_s16le audio at 16 kHz mono, framed as WebSocket binary messages. See Protocol details above for the full handshake, message types, and barge-in semantics.

Run tests from the dashboard

Select scenarios for your agent and click Run. With Chirp configured, the run dialog shows a Run with Chirp button:

Cekura will:

Open a WebSocket to your configured URL with the Basic Auth header (if set)
Stream 16 kHz mono PCM audio to your agent and play your agent’s audio back
Capture the conversation, transcribe it, and run your evaluators against the result

View results

Results appear in your dashboard like any other run — status, metrics, transcripts, and audio playback are all available. Failed connections are surfaced via run status:

Run status	When you see it
`REJECTED`	Server returned `401`/`403` on the WebSocket upgrade (bad Basic Auth or rejected origin).
`INCOMPLETED`	Host unreachable, TLS failure, or server closed the connection before the test could complete.
`COMPLETED`	Audio exchange finished cleanly. Evaluator scores are available.

Use the API to trigger Chirp runs from your own code or CI.

Prerequisites

Configure Chirp credentials on your agent first (same as the Dashboard tab):

Required:

WebSocket URL — wss:// endpoint that speaks the CHIRP protocol (see Protocol details).

Optional:

Basic Auth Username / Password for the WebSocket upgrade.

API Endpoint

POST https://api.cekura.ai/test_framework/v1/scenarios-external/run_scenarios_chirp/

Authentication

Include your Cekura API key in the request header:

X-CEKURA-API-KEY: <YOUR_API_KEY>

Request Parameters

scenarios (array | integer | string, required): Test scenarios to run

Array format: List of scenario IDs [123, 456, 789]
Integer format: Run the first N scenarios for the agent 5
String format: Run all scenarios for the agent "all"

agent_id (integer, optional): Your Agent ID in Cekura. Required when using integer or "all" format for scenarios.frequency (integer, optional): Number of times to run each scenario (default: 1).name (string, optional): Custom name for this test run.concurrency_limit (integer, optional): Cap on parallel runs.

Examples

Single Run (cURL)

curl -X POST \
  'https://api.cekura.ai/test_framework/v1/scenarios-external/run_scenarios_chirp/' \
  -H 'X-CEKURA-API-KEY: <YOUR_API_KEY>' \
  -H 'Content-Type: application/json' \
  -d '{
    "scenarios": [30]
  }'

Multiple Runs (cURL)

curl -X POST \
  'https://api.cekura.ai/test_framework/v1/scenarios-external/run_scenarios_chirp/' \
  -H 'X-CEKURA-API-KEY: <YOUR_API_KEY>' \
  -H 'Content-Type: application/json' \
  -d '{
    "scenarios": [30, 31, 32],
    "frequency": 2,
    "name": "Chirp Test Run"
  }'

Run First N Scenarios (cURL)

curl -X POST \
  'https://api.cekura.ai/test_framework/v1/scenarios-external/run_scenarios_chirp/' \
  -H 'X-CEKURA-API-KEY: <YOUR_API_KEY>' \
  -H 'Content-Type: application/json' \
  -d '{
    "scenarios": 5,
    "agent_id": 123,
    "frequency": 1,
    "name": "First 5 Scenarios"
  }'

Run All Scenarios (cURL)

curl -X POST \
  'https://api.cekura.ai/test_framework/v1/scenarios-external/run_scenarios_chirp/' \
  -H 'X-CEKURA-API-KEY: <YOUR_API_KEY>' \
  -H 'Content-Type: application/json' \
  -d '{
    "scenarios": "all",
    "agent_id": 123,
    "frequency": 1,
    "name": "All Scenarios Test"
  }'

Python Example

import requests

API_KEY = "<YOUR_API_KEY>"
BASE_URL = "https://api.cekura.ai/test_framework"

headers = {
    "X-CEKURA-API-KEY": API_KEY,
    "Content-Type": "application/json",
}

payload = {
    "scenarios": [30, 31, 32],
    "frequency": 2,
    "name": "Chirp Test Run",
}

resp = requests.post(
    f"{BASE_URL}/v1/scenarios-external/run_scenarios_chirp/",
    headers=headers,
    json=payload,
)
result = resp.json()
print(result)

Python — Run All Scenarios

import requests

API_KEY = "<YOUR_API_KEY>"
BASE_URL = "https://api.cekura.ai/test_framework"

headers = {
    "X-CEKURA-API-KEY": API_KEY,
    "Content-Type": "application/json",
}

payload = {
    "scenarios": "all",
    "agent_id": 123,
    "frequency": 1,
    "name": "All Scenarios Test",
}

resp = requests.post(
    f"{BASE_URL}/v1/scenarios-external/run_scenarios_chirp/",
    headers=headers,
    json=payload,
)
result = resp.json()
print(result)

Response

{
  "id": 16870,
  "name": "Chirp Test Run",
  "agent": 5,
  "status": "in_progress",
  "success_rate": 0.0,
  "run_as_text": false,
  "is_cronjob": false,
  "runs": [
    {
      "id": 34625,
      "status": "running",
      "scenario": 11547,
      "scenario_name": "Customer Support Scenario",
      "test_profile_data": {"key": "value"}
    }
  ],
  "created_at": "2026-04-30T09:32:59.484534Z",
  "updated_at": "2026-04-30T09:32:59.484942Z"
}

Error Responses

Missing Chirp Credentials

{
  "detail": "Agent must have CHIRP credentials configured (chirp_data with chirp_websocket_url)."
}

Missing WebSocket URL

{
  "chirp_data": ["chirp_websocket_url is required"]
}

Invalid Scenarios

{
  "scenarios": ["Invalid scenario IDs or scenarios not found"]
}

Insufficient Balance

{
  "detail": "Insufficient balance for this operation"
}

Monitor Results

Poll for results using the List Runs with IDs API.

CHIRP (Conversational Handoff for Inter-agent Realtime Protocol) is the wire format Cekura uses to exchange real-time voice with your agent over a single WebSocket connection.It is intentionally minimal: raw PCM audio as binary frames in both directions, plus a small set of JSON control events for speech boundaries and errors. There is no SDK, no framing layer, and no vendor lock-in — any server that can accept a WebSocket upgrade and read/write 16 kHz mono PCM can plug into Cekura.

Audio Specification

Property	Value
Encoding	`pcm_s16le` (signed 16-bit little-endian PCM)
Sample rate	16,000 Hz
Channels	1 (mono)
Frame size	20 ms (640 bytes) recommended; any even-length payload is accepted

All binary WebSocket frames carry raw audio samples at this format. There is no header, container, or framing — just sample bytes.

Authentication & Handshake

Request: Cekura initiates a WebSocket upgrade against the URL configured on your agent. If you set Basic Auth credentials, the upgrade includes:
```
Authorization: Basic <base64(username:password)>
```
Response: Your server responds with HTTP 101 Switching Protocols to accept, or HTTP 401/HTTP 403 to reject.
Result: A valid handshake establishes the live connection. A rejected handshake marks the run as REJECTED.

If you don’t configure Basic Auth on the agent, no Authorization header is sent.

Message Types

Binary Frames — Audio (bidirectional)

Direction: Cekura ↔ your server
Content: Raw pcm_s16le samples, 16 kHz mono
Format: WebSocket binary frame; payload is sample bytes only
Minimum integration: A working server only needs to read and write binary frames

Text Frames — Control Events

All text frames are UTF-8 JSON. Every event has these fields:

Field	Type	Description
`type`	string	Event name (see below)
`id`	UUID string	Event ID, auto-filled by sender
`ts_ms`	integer	Unix epoch milliseconds when the event was generated
`data`	object	Event-specific payload

`speech.started`

{
  "type": "speech.started",
  "id": "c0e1a39f-92d1-4f1c-9d8a-2a1b3c4d5e6f",
  "ts_ms": 1729123456789,
  "data": { "utterance_id": "u_abc123" }
}

Sent by: Cekura when its VAD detects the digital human starting to speak, or by your server to interrupt Cekura mid-utterance.
Required fields: type, data.utterance_id.
Timing: Not precisely bracketed around audio — the first audio frames may arrive before this event by ~200 ms.

`speech.completed`

{
  "type": "speech.completed",
  "id": "a2dbf8e4-0767-4a3d-8a29-3f5b7f2c4d10",
  "ts_ms": 1729123460220,
  "data": { "utterance_id": "u_abc123" }
}

Sent by: Cekura when its VAD declares end-of-speech, or by your server to signal that the user finished talking.
Required fields: type, data.utterance_id (must match the corresponding speech.started).
Timing: Trailing audio frames may arrive after this event. Don’t treat it as a hard playback cutoff.

`session.error`

{
  "type": "session.error",
  "id": "b1-err-0001",
  "ts_ms": 1729123462000,
  "data": {
    "code": "INVALID_MESSAGE",
    "message": "Unexpected type 'foo'"
  }
}

Code	Meaning
`INVALID_MESSAGE`	Malformed JSON or unknown `type`
`MISSING_FIELD`	Required field absent
`INVALID_AUDIO_FRAME`	Empty or odd-length binary frame
`INTERNAL_ERROR`	Server-side bug — connection is closed after sending

Recoverable errors (everything except INTERNAL_ERROR) leave the connection open. The offending frame is dropped and the session continues.

Event Ordering & Timing

VAD runs independently from audio reading, which creates timing skew you should plan for:

Event	Offset relative to audio
`speech.started`	~200 ms after the first audio frame
`speech.completed`	~200 ms before the last audio frame

Implications:

Binary frames arrive outside the speech.started/speech.completed boundary.
Don’t treat speech.completed as a hard cutoff for audio playback.
Use utterance_id for grouping, but treat associations as best-effort near boundaries.
Servers that ignore text events entirely (binary-only minimum) are unaffected.

Barge-in (Interruption)

To interrupt the digital human while it’s speaking, send speech.started from your server mid-utterance:

Cekura stops audio transmission immediately.
Cekura cancels the in-flight digital-human utterance and emits a speech.completed for it.
The session re-enters listening mode.

There is no separate “interrupt” message — speech.started from your side is the signal. This is the right hook for custom VAD or push-to-talk flows on your end.

Connection Lifecycle

Cekura opens a WebSocket to your configured URL (e.g. wss://your-host/voice) with the Basic Auth header (if configured).
Your server validates the handshake and responds HTTP 101 (or rejects with 401/403).
Both sides exchange audio as binary frames (pcm_s16le, 16 kHz mono).
Either side may emit text control events (speech.started, speech.completed, session.error).
The connection closes with WebSocket code 1000 for normal termination.

Close Codes

Code	Meaning
`1000`	Normal closure
`1008`	Policy violation (e.g. auth rejected)
`1011`	Internal error on the sender’s side

Error Handling

Scenario	Run status	Behavior
`HTTP 401`/`403` on upgrade	`REJECTED`	Cekura logs the rejection and stops.
Host unreachable, TCP refused, TLS failure	`INCOMPLETED`	Cekura retries 3 times with backoff before giving up.
Upgrade accepted but immediately closed	`INCOMPLETED`	Close code is logged in the run details.
Protocol violation (malformed JSON, missing field, odd-length audio)	session continues	Cekura sends a `session.error`, drops the offending frame.
Server closes gracefully	depends on call	Status is determined by whether the test completed before close.
Network drop or crash	`INCOMPLETED`	Same handling as a TCP failure.

Sample Session Flow

 [Cekura → Server]  HTTP upgrade with Authorization header
 [Server → Cekura]  HTTP 101 Switching Protocols
 [Server → Cekura]  binary <640 B audio @ 16k mono>     (user speaking)
 [Server → Cekura]  binary  (additional frames)
 [Cekura → Server]  binary  (digital-human audio response)
 [Cekura → Server]  binary  (more audio)
 [Cekura → Server]  text   speech.started   { utterance_id: "agent-u1" }
 [Cekura → Server]  binary  (more audio)
 [Cekura → Server]  text   speech.completed { utterance_id: "agent-u1" }
[Cekura → Server]  binary  (trailing audio)
[Server → Cekura]  WebSocket close 1000

Implementation Notes

Audio-and-events only. CHIRP does not include a tool/function-call mechanism. Any tool calls must happen inside your server’s own LLM/agent loop.
Minimum viable server: validate Basic Auth, accept binary frames, emit binary frames. You can ignore all text events and still have a working integration.
Recommended enhancements: react to speech.started / speech.completed for UI cues, custom VAD, or finer-grained barge-in control.
Audio format is fixed. Cekura only sends and accepts pcm_s16le at 16 kHz mono. If your stack speaks something else, resample and convert at the WebSocket boundary.

Get Started

Key Concepts

Guides

Integrations

Advanced

Documentation Index

​Overview

​Prerequisites

​API Endpoint

​Authentication

​Request Parameters

​Examples

​Single Run (cURL)

​Multiple Runs (cURL)

​Run First N Scenarios (cURL)

​Run All Scenarios (cURL)

​Python Example

​Python — Run All Scenarios

​Response

​Error Responses

​Missing Chirp Credentials

​Missing WebSocket URL

​Invalid Scenarios

​Insufficient Balance

​Monitor Results

​Audio Specification

​Authentication & Handshake

​Message Types

​Binary Frames — Audio (bidirectional)

​Text Frames — Control Events

speech.started

speech.completed

session.error

​Event Ordering & Timing

​Barge-in (Interruption)

​Connection Lifecycle

​Close Codes

​Error Handling

​Sample Session Flow

​Implementation Notes

​Next Steps

Overview

Prerequisites

API Endpoint

Authentication

Request Parameters

Examples

Single Run (cURL)

Multiple Runs (cURL)

Run First N Scenarios (cURL)

Run All Scenarios (cURL)

Python Example

Python — Run All Scenarios

Response

Error Responses

Missing Chirp Credentials

Missing WebSocket URL

Invalid Scenarios

Insufficient Balance

Monitor Results

Audio Specification

Authentication & Handshake

Message Types

Binary Frames — Audio (bidirectional)

Text Frames — Control Events

`speech.started`

`speech.completed`

`session.error`

Event Ordering & Timing

Barge-in (Interruption)

Connection Lifecycle

Close Codes

Error Handling

Sample Session Flow

Implementation Notes

Next Steps
